Rotorcraft vs Fixed-Wing VTOL: The right platform for your flight operations

Drones have rapidly evolved into essential tools across multiple industries, from agriculture to infrastructure inspection. Two of the most widely used categories are fixed-wing VTOL (Vertical Take-Off and Landing) drones and rotorcraft drones (such as quadcopters and multi-rotors). Whilst both serve similar overarching purposes; data capture, monitoring, and automation, their design philosophies and operational capabilities differ significantly.

Understanding these differences is key to choosing the right platform for specific use cases.

What is fixed-wing VTOL?

Fixed-wing VTOL drones combine the characteristics of traditional aeroplanes with vertical take-off and landing capabilities. Unlike conventional fixed-wing aircraft that require a runway, VTOL models can lift off vertically using rotors and then transition into forward flight using aerodynamic lift generated by wings.

This hybrid design allows them to cover long distances efficiently while retaining flexibility in deployment. During forward flight, the wings provide lift, reducing reliance on motors and improving energy efficiency. As a result, fixed-wing VTOL drones can achieve longer flight times and larger area coverage compared to most rotorcraft systems.

What are rotorcraft?

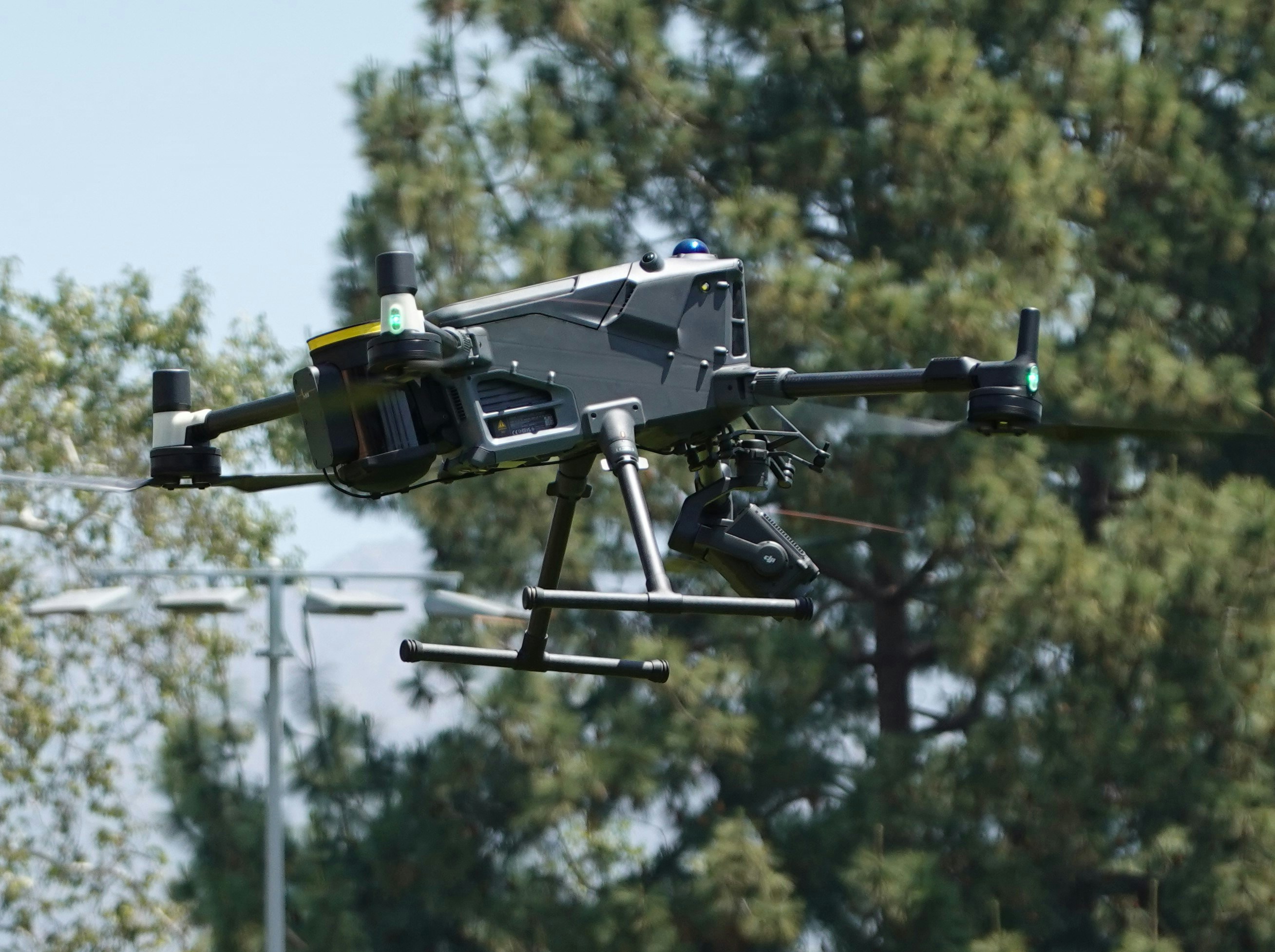

Rotorcraft drones, commonly known as multi-rotors (including quadcopters, hexacopters, and octocopters), rely entirely on spinning propellers to generate lift. They can hover, ascend, descend, and manoeuvre in tight spaces with exceptional precision.

Because they do not require forward motion to stay airborne, rotorcraft drones excel at stationary flight and close-range operations. Their intuitive control and stability make them the most used drones in commercial and recreational markets.

Key differences between fixed-wing VTOL and rotorcraft

Flight Efficiency and Endurance

One of the most significant differences between rotorcraft and fixed-wing VTOL lies in energy efficiency; fixed-wing VTOL drones are far more efficient during cruise flight because lift is generated aerodynamically, like a traditional aircraft, rather than through constant motor thrust like a helicopter. This translates into longer flight times, often several hours, and the ability to cover tens or even hundreds of kilometres in a single mission.

By contrast, rotorcraft drones consume energy continuously just to stay airborne. This limits their endurance, typically ranging from 20 to 60 minutes for small systems, some larger systems can reach low single figure hours depending on payload and configuration, however, battery technology and size become prohibitive beyond this.

The next step is traditional propulsion to increase endurance which comes with cost and weight penalties when compared to electric fixed-wing platforms.

Operational flexibility

Rotorcraft drones offer unmatched flexibility in confined environments. Their ability to hover and move in any direction makes them ideal for complex operational environments, such as urban areas, indoor inspections or confined spaces

Fixed-wing VTOL drones, while capable of vertical take-off and landing, require more space for transition between vertical and horizontal flight. They are less suited to tight, cluttered environments but excel in open areas.

Payload capacity and stability

Rotorcraft drones can carry a wide variety of payloads, including cameras, Light Detection and Ranging (LiDAR) systems, and thermal sensors. Their hovering capability provides stable platforms for detailed inspections and data capture.

Fixed-wing VTOL drones can also carry advanced payloads, such as the sensor systems listed above, but their strength lies in efficiently transporting these over large distances rather than prolonged stationary observation. While they can slow down or loiter, they cannot hover like rotorcraft systems, requiring exceptional piloting skills to maintain precise, stable loitering patterns.

Ease of use and deployment

Rotorcraft drones are generally easier to operate, making them ideal for beginners and quick deployments. Minimal planning is required, and operators can launch them almost anywhere.

Fixed-wing VTOL drones, although more flexible than traditional fixed-wing aircraft, still require more mission planning, airspace awareness, and operational expertise. Their complexity requires more demanding training and competency to become proficient.

Example applications for Fixed-Wing VTOL

Large-Scale Mapping and Surveying

Fixed-wing VTOL drones are ideal for mapping large areas such as agricultural land, mining sites, and infrastructure corridors. Their extended endurance allows them to capture high-resolution data over vast regions in a single flight, reducing time and operational costs.

Environmental Monitoring

From wildlife tracking to coastal monitoring, these drones are perfect for applications requiring wide-area coverage and minimal human intervention.

Utilities Inspection

Linear infrastructure inspections benefit from long-range capabilities. Fixed-wing VTOL drones can follow pipelines, railways, or powerlines for dozens of kilometres without interruption.

Search and Rescue (Large Areas)

In search and rescue missions covering expansive terrain, these drones provide rapid situational awareness, helping teams locate missing persons more efficiently.

Example applications for Rotorcraft

Infrastructure Inspection

Rotorcraft drones are widely used for inspecting bridges, buildings, wind turbines, and telecommunications towers. Their ability to hover allows for close-up, highly detailed inspections, especially when combined with sensor systems such as LiDAR.

Aerial Photography and Videography

The stability and manoeuvrability of rotorcraft drones make them the preferred choice for cinematography, marketing, and real estate imaging.

Precision Agriculture

While fixed-wing VTOL drones handle large-area mapping, rotorcraft drones are often used for targeted crop spraying, monitoring, and plant-level analysis.

Emergency Response (Urban Areas)

In disaster zones or dense urban settings, rotorcraft drones provide quick deployment and real-time aerial views, assisting first responders in decision-making.

Choosing the Right Drone for the Job

The decision between fixed-wing VTOL and rotorcraft drones ultimately depends on the mission requirements:

Choose fixed-wing VTOL if you need:

• Long flight endurance

• Coverage of large areas

• Efficient long-distance operations

Choose rotorcraft drones if you need:

• Hovering and precision

• Operation in tight spaces

• Ease of deployment and control

 Conclusions

The real value and benefits of these platforms emerge when organisations avoid framing the selection criteria as a binary “this-or-that” competition. Rotorcraft enable the organisation to deliver immediate and localised high precision mission taskings. By contrast fixed-wing VTOL supports the requirement for endurance-based missions supporting strategic oversight.

Both fixed-wing VTOL and rotorcraft drones play vital roles in modern drone operations. Rather than competing technologies, they are complementary tools, each suited to specific tasks. As drone technology continues to evolve, organisations that understand these differences can make smarter investments, improve operational efficiency, and unlock new opportunities across industries.

When operated together they provide a layered aerial capability, one that scales from a single building or point of interest to an entire postcode and beyond in minutes rather than hours. As regulations mature and BVLOS (Beyond Visual Line of Sight) operations become more routine, fixed wing VTOL platforms will increasingly complement, rather than replace multirotor drone fleets.

We see the most effective drone programmes starting with project requirements rather than airframes as part of a capability rather than platform led discussion.

The future of drone operations isn’t about choosing a side, it’s about choosing the right tool, at the right time for the right outcome.
